自1962年以來，Rebling塑料公司為航空和航天工業生產了高質量的電池連接器和配件。今天，該公司為各種商業和軍事應用提供了廣泛的電池組件產品線。Rebling的產品經過現場驗證，符合所有適當?shù)能娪脴?biāo)準和規范，性能可靠。標準型號通?？梢粤⒓磸膸齑嬷邪l(fā)貨。對于特殊訂單，Rebling也可以根據用戶的規格進行構建。

MS3349-2

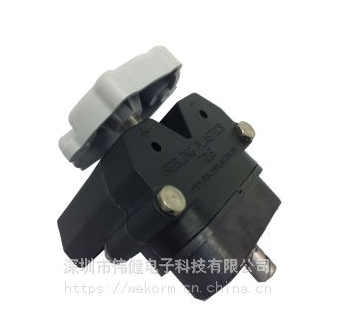

Battery Quick Disconnects

7007    Four-Wire Design, Mates with all MS3509   (7002 series) receptacles    MS25182-2

MS25182-2

7013    Two-Wire Design, Self-aligning sockets,   Mates with all Rebling 7002 series receptacles   Rebling 7013

7016    Two-Wire Design, Short Body Length, For  Lead-Acid or Nickel-Cadmium Batteries, Mates with all MS3509 (7002 series)  receptacles   Rebling 7016

7017    Two-Wire Design, For Lead-Acid or   Nickel-Cadmium Batteries, Mates with all MS3509 (7002 series)  receptacles    MS3349-2

MS3349-2

8003   Two-Wire   Design, For Lead-Acid, Mates with all Receptacle Adapters per Figure 2 of   MIL-B-83769, and Rebling Part No. 8002

MS3349-3

Battery  Receptacles

7002 Style 1    Steel Shaft   & Fasteners, Color-coded for Lead-Acid or Nickel-Cadmium Batteries, Mates   with all MS25182-2 and MS3349-2 (7000 series Quick Disconnects)

MS3509-28

7002 Style 2   Color-coded   for Lead-Acid or Nickel-Cadmium Batteries, Mates with MS25182-2 and MS3349-2   (7000 series Quick Disconnects)

MS3509-29

7002 Terminal   Adapters Data Sheet    Terminal Adapters   7002-3-109

7002-37 Drawing   Safety   Receptacle (No contact pins), Mates with all 7000 series Quick Disconnects   including MS25182-2 and MS3349-2

8002    For Lead-Acid   Batteries, Mates with all MS3349-3 (Rebling 8003)

Vent   Filler Caps

700240 &  700250   Ethylene   Propylene 0-Ring & Sleeve, For use on Nickel-Cadmium battery, P/N 700240   conforms to M81757/2-1, P/N 700250 conforms to MIL-B-81757/10; MS3510-1 and   MS75046-1

M81757/2, M81757/10, MS3510-1,  MS75046-1

700247   Reduced   electrolyte leakage, Automatic venting of battery gases at 2-10 psi, Meets   proposed standard MS3510-B, One piece molded polyamide construction with   baffle sonically welded to body

MS3510-B
