CarlisleIT的Tufflite電纜適用于需要小型、輕型、抗電弧、額定溫度為260的通用電線的應用場合。

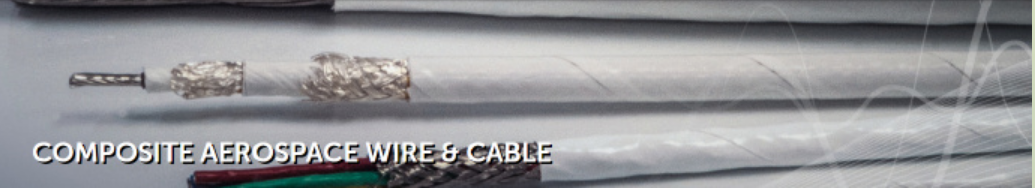

我們的復合絕緣電纜是為了克服與聚酰亞胺和XL-ETFE有關的限制，與傳統的商業航空航天電纜相比，具有尺寸和重量的節省。

Tufflite-包括正常重量(TL)、輕量級(SLT)、歐洲米制(TLR)、增強正常重量(ST)、厚壁(TLS)、鋁(TLA)等全套Tufflite線

無縫聚四氟乙烯(PTFE)絕緣線和電纜夾套提供了膠帶包覆的所有優點，具有光滑的外觀和擠出機的安裝特性

無縫產品滿足AS22759/80-/92和NEMA WC27500的所有要求

無縫t符合AS22759/180-/192的要求

深圳市偉健電子科技有限公司

公司網址：44005.net.cn

地址：深圳市龍崗區坂田街道五和社區創匯國際中心706

傳真：0755-23941921

E-mali:simon@wekorm.com

聯系人：臧宏剛     電話：15384495506（微信同步）      QQ:2330292221

Part Name AWG Conductor Resistance (Ohms/1000 ft) Conductor Stranding Number x Size (mm2) Finished Wire Diameter Max (in) Type

SLT-260-10N 10 1.25 37 x 26 0.127 SLT Thin Wall

SLT-260-12N 12 1.98 37 x 28 0.104 SLT Thin Wall

SLT-260-14N 14 3 19 x 27 0.083 SLT Thin Wall

SLT-260-16N 16 4.76 19 x 29 0.0695 SLT Thin Wall

SLT-260-16NA 16 5.16 19 x 29 0.0695 SLT Thin Wall

SLT-260-18N 18 6.1 19 x 32 0.062 SLT Thin Wall

TL-260-10N 10 1.25 37 x 26 0.13 TL Medium Wall

TL-260-12N 12 1.98 37 x 28 0.108 TL Medium Wall

TL-260-14N 14 3 19 x 27 0.086 TL Medium Wall

TL-260-16N 16 4.76 19 x 29 0.073 TL Medium Wall

TL-260-16NA 16 5.16 19 x 29 0.073 TL Medium Wall

TL-260-18N 18 6.1 19 x 32 0.065 TL Medium Wall

TL-260-18NA 18 6.79 19 x 30 0.065 TL Medium Wall

TL-260-20N 20 9.77 19 x 34 0.056 TL Medium Wall

TL-260-20NA 20 11.4 19 x 32 0.056 TL Medium Wall

TL-260-22N 22 16 19 x 36 0.047 TL Medium Wall

TL-260-22NA 22 18.6 19 x 34 0.047 TL Medium Wall

TL-260-24NA 24 30.1 19 x 36 0.041 TL Medium Wall

TL-260-26NA 26 58.4 19 x 38 0.037 TL Medium Wall

TL-260-8N 8 0.694 133 x 29 0.187 TL Medium Wall

TLA-175-1/0A 0 TLA Thick Wall Alum

TLA-175-1A 1 0.214 219 x 24 0.42 TLA Thick Wall Alum

TLA-175-2/0A 0 TLA Thick Wall Alum

TLA-175-2A 2 0.268 168 x 24 0.382 TLA Thick Wall Alum

TLA-175-3/0A 0 TLA Thick Wall Alum

TLA-175-4/0A 0 TLA Thick Wall Alum

TLA-175-4A 4 0.427 107 x 24 0.314 TLA Thick Wall Alum

TLA-175-6A 6 0.641 70 x 24 0.258 TLA Thick Wall Alum

TLA-175-8A 8 1.09 41 x 24 0.207 TLA Thick Wall Alum

TLS-260-4/0N 0 TLS Thick Wall Copper

SLT-260-18NA 18 6.79 19 x 30 0.062 SLT Thin Wall

SLT-260-20N 20 9.77 19 x 34 0.053 SLT Thin Wall

SLT-260-20NA 20 11.4 19 x 32 0.053 SLT Thin Wall

SLT-260-22N 22 16 19 x 36 0.044 SLT Thin Wall

SLT-260-22NA 22 18.6 19 x 34 0.044 SLT Thin Wall

SLT-260-24NA 24 30.1 19 x 36 0.038 SLT Thin Wall

SLT-260-26NA 26 58.4 19 x 38 0.034 SLT Thin Wall

ST-260-1/0N 0 ST Enhanced Medium Wall

ST-260-10N 10 1.25 37 x 26 0.127 ST Enhanced Medium Wall

ST-260-12N 12 1.98 37 x 28 0.105 ST Enhanced Medium Wall

ST-260-14N 14 3 19 x 27 0.086 ST Enhanced Medium Wall

ST-260-16N 16 4.76 19 x 29 0.073 ST Enhanced Medium Wall

ST-260-16NA 16 5.16 19 x 29 0.073 ST Enhanced Medium Wall

ST-260-18N 18 6.1 19 x 32 0.065 ST Enhanced Medium Wall

ST-260-18NA 18 6.79 19 x 30 0.065 ST Enhanced Medium Wall

ST-260-1N 1 0.144 817 x 30 0.408 ST Enhanced Medium Wall

ST-260-2/0N 0 ST Enhanced Medium Wall

ST-260-20N 20 9.77 19 x 34 0.055 ST Enhanced Medium Wall

ST-260-20NA 20 11.4 19 x 32 0.055 ST Enhanced Medium Wall

ST-260-22N 22 16 19 x 36 0.047 ST Enhanced Medium Wall

ST-260-22NA 22 18.6 19 x 34 0.047 ST Enhanced Medium Wall

ST-260-24NA 24 30.1 19 x 36 0.042 ST Enhanced Medium Wall

ST-260-26NA 26 58.4 19 x 38 0.037 ST Enhanced Medium Wall

ST-260-2N 2 0.177 665 x 30 0.364 ST Enhanced Medium Wall

ST-260-3/0N 0 ST Enhanced Medium Wall

ST-260-4/0N 0 ST Enhanced Medium Wall

ST-260-4N 4 0.275 133 x 25 0.288 ST Enhanced Medium Wall

ST-260-6N 6 0.436 133 x 27 0.229 ST Enhanced Medium Wall

ST-260-8N 8 0.694 133 x 29 0.188 ST Enhanced Medium Wall

TL-260-1/0N 0 TL Medium Wall

TL-260-1N 1 0.144 817 x 30 0.408 TL Medium Wall

TL-260-2/0N 0 TL Medium Wall

TL-260-2N 2 0.177 665 x 30 0.364 TL Medium Wall

TL-260-3/0N 0 TL Medium Wall

TL-260-4/0N 0 TL Medium Wall

TL-260-4N 4 0.275 133 x 25 0.288 TL Medium Wall

TL-260-6N 6 0.436 133 x 27 0.228 TL Medium Wall

TLR-260-10N 10 1.249619019 61 0.131102362 TLR Metric Medium Wall

TLR-260-12N 12 2.07253886 37 0.106299213 TLR Metric Medium Wall

TLR-260-14N 14 3.322157879 37 0.088188976 TLR Metric Medium Wall

TLR-260-16N 16 4.419384334 19 0.075590551 TLR Metric Medium Wall

TLR-260-18N 18 6.430966169 19 0.063385827 TLR Metric Medium Wall

TLR-260-20N 20 10.1188662 19 0.052755906 TLR Metric Medium Wall

TLR-260-22N 22 18.28710759 19 0.043307087 TLR Metric Medium Wall

TLR-260-24NA 24 34.74550442 19 0.037795276 TLR Metric Medium Wall

TLR-260-26NA 26 48.76562024 19 0.033070866 TLR Metric Medium Wall

TLR-260-2N 2 0.185918927 703 0.360629921 TLR Metric Medium Wall

TLR-260-4N 4 0.295641573 444 0.291732283 TLR Metric Medium Wall

TLR-260-6N 6 0.4815605 189 0.224409449 TLR Metric Medium Wall

TLR-260-8N 8 0.701005791 127 0.173228346 TLR Metric Medium Wall

TLS-260-1/0N 0 TLS Thick Wall Copper

TLS-260-10N 10 1.25 37 x 26 0.153 TLS Thick Wall Copper

TLS-260-12N 12 1.98 37 x 28 0.13 TLS Thick Wall Copper

TLS-260-14N 14 3 19 x 27 0.111 TLS Thick Wall Copper

TLS-260-16N 16 4.76 19 x 29 0.096 TLS Thick Wall Copper

TLS-260-16NA 16 5.16 19 x 29 0.096 TLS Thick Wall Copper

TLS-260-18N 18 6.1 19 x 32 0.088 TLS Thick Wall Copper

TLS-260-18NA 18 6.79 19 x 30 0.088 TLS Thick Wall Copper

TLS-260-1N 1 0.144 817 x 30 0.425 TLS Thick Wall Copper

TLS-260-20N 20 9.77 19 x 34 0.078 TLS Thick Wall Copper

TLS-260-2/0N 0 TLS Thick Wall Copper

TLS-260-20NA 20 11.4 19 x 32 0.078 TLS Thick Wall Copper

TLS-260-22N 22 16 19 x 36 0.07 TLS Thick Wall Copper

TLS-260-22NA 22 18.6 19 x 34 0.07 TLS Thick Wall Copper

TLS-260-24NA 24 30.1 19 x 36 0.066 TLS Thick Wall Copper

TLS-260-2N 2 0.177 665 x 30 0.376 TLS Thick Wall Copper

TLS-260-3/0N 0 TLS Thick Wall Copper

TLS-260-4N 4 0.275 133 x 25 0.308 TLS Thick Wall Copper

TLS-260-6N 6 0.436 133 x 27 0.243 TLS Thick Wall Copper

TLS-260-8N 8 0.694 133 x 29 0.203 TLS Thick Wall Copper
