R&B Electronics是一家經過認證的飛機質量產品制造商。專營機電裝配和精密加工零件。目前，主要的OEM飛機制造商和PMA批準的零件供應商提供產品。

從空中，陸地，海上和太空。它們被用于諾斯羅普·格魯曼全球鷹、洛克希德·馬丁F-22猛禽、M1型艾布拉姆斯主戰坦克、美國宇航局航天飛機項目以及各種航空母艦和潛艇。

產品詳細

R&B公司成立1985年是世界級質量航空和國防產品制造商

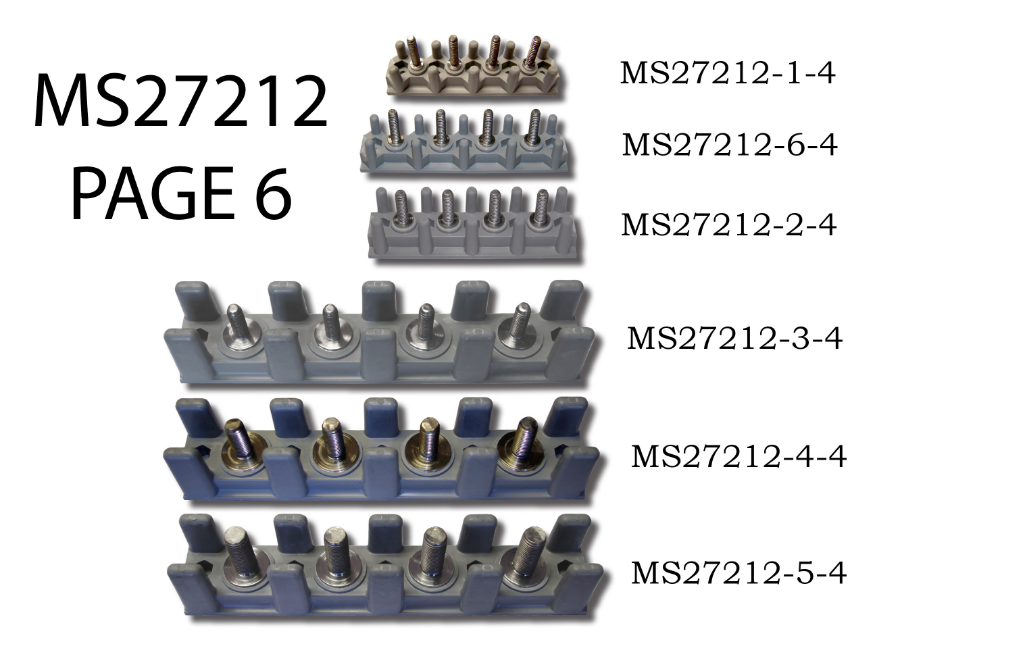

模壓螺柱式電氣端子板


MS27212-1-1	MS27212-6-1	MS27212-2-1
MS27212-1-2	MS27212-6-2	MS27212-2-2
MS27212-1-3	MS27212-6-3	MS27212-2-3
MS27212-1-4	MS27212-6-4	MS27212-2-4
MS27212-1-5	MS27212-6-5	MS27212-2-5
MS27212-1-6	MS27212-6-6	MS27212-2-6
MS27212-1-7	MS27212-6-7	MS27212-2-7
MS27212-1-8	MS27212-6-8	MS27212-2-8
MS27212-1-9	MS27212-6-9	MS27212-2-9
MS27212-1-10	MS27212-6-10	MS27212-2-10
MS27212-1-11	MS27212-6-11	MS27212-2-11
MS27212-1-12	MS27212-6-12	MS27212-2-12
MS27212-1-13	MS27212-6-13	MS27212-2-13
MS27212-1-14	MS27212-6-14	MS27212-2-14
MS27212-1-15	MS27212-6-15	MS27212-2-15
MS27212-1-16	MS27212-6-16	MS27212-2-16
MS27212-1-17
MS27212-1-18
MS27212-1-19
MS27212-1-20

MS27212-3-1	MS27212-4-1	MS27212-5-1
MS27212-3-2	MS27212-4-2	MS27212-5-2
MS27212-3-3	MS27212-4-3	MS27212-5-3
MS27212-3-4	MS27212-4-4	MS27212-5-4
MS27212-3-5	MS27212-4-5	MS27212-5-5
MS27212-3-6	MS27212-4-6	MS27212-5-6
MS27212-3-7	MS27212-4-7	MS27212-5-7
MS27212-3-8	MS27212-4-8	MS27212-5-8

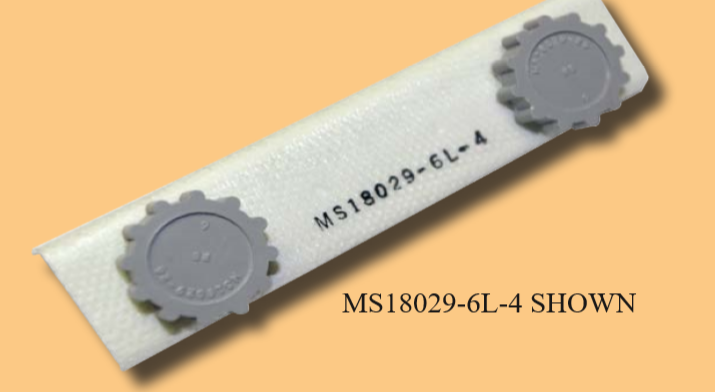

塑料層壓板電蓋總成

MS18029-11S-1	MS18029-12S-1	MS18029-14S-1
MS18029-11S-2	MS18029-12S-2	MS18029-14S-2
MS18029-11S-3	MS18029-12S-3	MS18029-14S-3
MS18029-11S-4	MS18029-12S-4	MS18029-14S-4
MS18029-11S-5	MS18029-12S-5	MS18029-14S-5
MS18029-11S-6	MS18029-12S-6	MS18029-14S-6
MS18029-11S-7	MS18029-12S-7	MS18029-14S-7
MS18029-11S-8	MS18029-12S-8	MS18029-14S-8
MS18029-11S-9	MS18029-12S-9	MS18029-14S-9
MS18029-11S-10	MS18029-12S-10	MS18029-14S-10
MS18029-11S-11	MS18029-12S-11	MS18029-14S-11
MS18029-11S-12	MS18029-12S-12	MS18029-14S-12
MS18029-11S-13	MS18029-12S-13	MS18029-14S-13
MS18029-11S-14	MS18029-12S-14	MS18029-14S-14
MS18029-11S-15	MS18029-12S-15	MS18029-14S-15
MS18029-11S-16	MS18029-12S-16	MS18029-14S-16
MS18029-11S-17
MS18029-11S-18	MS18029-1S-1	MS18029-2S-1
MS18029-11S-19	MS18029-1S-2	MS18029-2S-2
MS18029-11S-20	MS18029-1S-3	MS18029-2S-3
	MS18029-1S-4	MS18029-2S-4
MS18029-13S-1	MS18029-1S-5	MS18029-2S-5
MS18029-13S-2	MS18029-1S-6	MS18029-2S-6
MS18029-13S-3	MS18029-1S-7	MS18029-2S-7
MS18029-13S-4	MS18029-1S-8	MS18029-2S-8
MS18029-13S-5	MS18029-1S-9	MS18029-2S-9
MS18029-13S-6	MS18029-1S-10	MS18029-2S-10
MS18029-13S-7	MS18029-1S-11	MS18029-2S-11
MS18029-13S-8	MS18029-1S-12	MS18029-2S-12
	MS18029-1S-13	MS18029-2S-13
MS18029-6S-1	MS18029-1S-14	MS18029-2S-14
MS18029-6S-2	MS18029-1S-15	MS18029-2S-15
MS18029-6S-3	MS18029-1S-16	MS18029-2S-16
MS18029-6S-4	MS18029-1S-17
MS18029-6S-5	MS18029-1S-18	MS18029-3S-1
MS18029-6S-6	MS18029-1S-19	MS18029-3S-2
MS18029-6S-7	MS18029-1S-20	MS18029-3S-3
MS18029-6S-8		MS18029-3S-4
MS18029-6S-9	MS18029-4S-1	MS18029-3S-5
MS18029-6S-10	MS18029-4S-2	MS18029-3S-6
MS18029-6S-11	MS18029-4S-3	MS18029-3S-7
MS18029-6S-12	MS18029-4S-4	MS18029-3S-8
MS18029-6S-13	MS18029-4S-5
MS18029-6S-14	MS18029-4S-6	MS18029-11L-1
MS18029-6S-15	MS18029-4S-7	MS18029-11L-2
MS18029-6S-16	MS18029-4S-8	MS18029-11L-3
		MS18029-11L-4
MS18029-5S-1	MS18029-12L-1	MS18029-11L-5
MS18029-5S-2	MS18029-12L-2	MS18029-11L-6
MS18029-5S-3	MS18029-12L-3	MS18029-11L-7
MS18029-5S-4	MS18029-12L-4	MS18029-11L-8
MS18029-5S-5	MS18029-12L-5	MS18029-11L-9
MS18029-5S-6	MS18029-12L-6	MS18029-11L-10
MS18029-5S-7	MS18029-12L-7	MS18029-11L-11
MS18029-5S-8	MS18029-12L-8	MS18029-11L-12
	MS18029-12L-9	MS18029-11L-13
MS18029-14L-1	MS18029-12L-10	MS18029-11L-14
MS18029-14L-2	MS18029-12L-11	MS18029-11L-15
MS18029-14L-3	MS18029-12L-12	MS18029-11L-16
MS18029-14L-4	MS18029-12L-13	MS18029-11L-17
MS18029-14L-5	MS18029-12L-14	MS18029-11L-18
MS18029-14L-6	MS18029-12L-15	MS18029-11L-19
MS18029-14L-7	MS18029-12L-16	MS18029-11L-20
MS18029-14L-8
MS18029-14L-9	MS18029-13L-1	MS18029-1L-1
MS18029-14L-10	MS18029-13L-2	MS18029-1L-2
MS18029-14L-11	MS18029-13L-3	MS18029-1L-3
MS18029-14L-12	MS18029-13L-4	MS18029-1L-4
MS18029-14L-13	MS18029-13L-5	MS18029-1L-5
MS18029-14L-14	MS18029-13L-6	MS18029-1L-6
MS18029-14L-15	MS18029-13L-7	MS18029-1L-7
MS18029-14L-16	MS18029-13L-8	MS18029-1L-8
		MS18029-1L-9
MS18029-3L-1	MS18029-2L-1	MS18029-1L-10
MS18029-3L-2	MS18029-2L-2	MS18029-1L-11
MS18029-3L-3	MS18029-2L-3	MS18029-1L-12
MS18029-3L-4	MS18029-2L-4	MS18029-1L-13
MS18029-3L-5	MS18029-2L-5	MS18029-1L-14
MS18029-3L-6	MS18029-2L-6	MS18029-1L-15
MS18029-3L-7	MS18029-2L-7	MS18029-1L-16
MS18029-3L-8	MS18029-2L-8	MS18029-1L-17
	MS18029-2L-9	MS18029-1L-18
MS18029-4L-1	MS18029-2L-10	MS18029-1L-19
MS18029-4L-2	MS18029-2L-11	MS18029-1L-20
MS18029-4L-3	MS18029-2L-12
MS18029-4L-4	MS18029-2L-13	MS18029-5L-1
MS18029-4L-5	MS18029-2L-14	MS18029-5L-2
MS18029-4L-6	MS18029-2L-15	MS18029-5L-3
MS18029-4L-7	MS18029-2L-16	MS18029-5L-4
MS18029-4L-8		MS18029-5L-5
		MS18029-5L-6
MS18029-6L-1	MS18029-6L-9	MS18029-5L-7
MS18029-6L-2	MS18029-6L-10	MS18029-5L-8
MS18029-6L-3	MS18029-6L-11
MS18029-6L-4	MS18029-6L-12
MS18029-6L-5	MS18029-6L-13
MS18029-6L-6	MS18029-6L-14
MS18029-6L-7	MS18029-6L-15
MS18029-6L-8	MS18029-6L-16

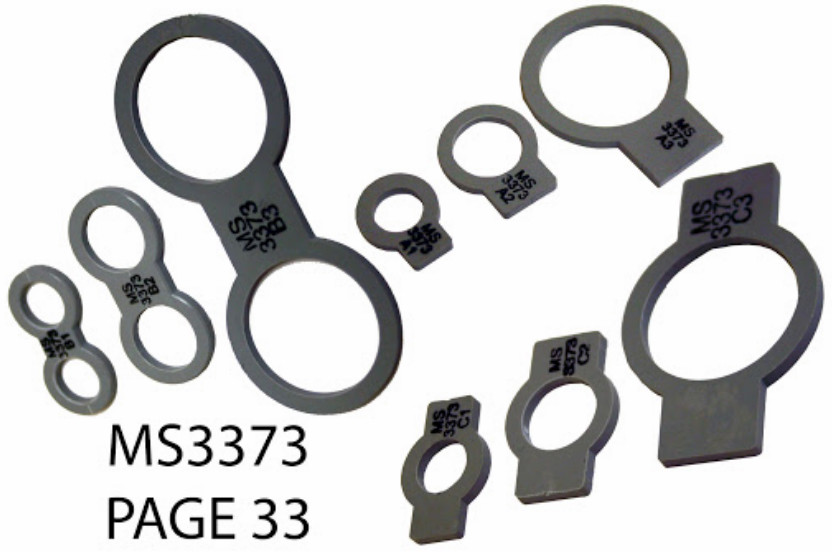

絕緣條安裝螺母


MS3373-A1

MS3373-A2

MS3373-A3

MS3373-A4

MS3373-B1

MS3373-B2

MS3373-B3

MS3373-B4

MS3373-C1

MS3373-C2

MS3373-C3

MS3373-C4

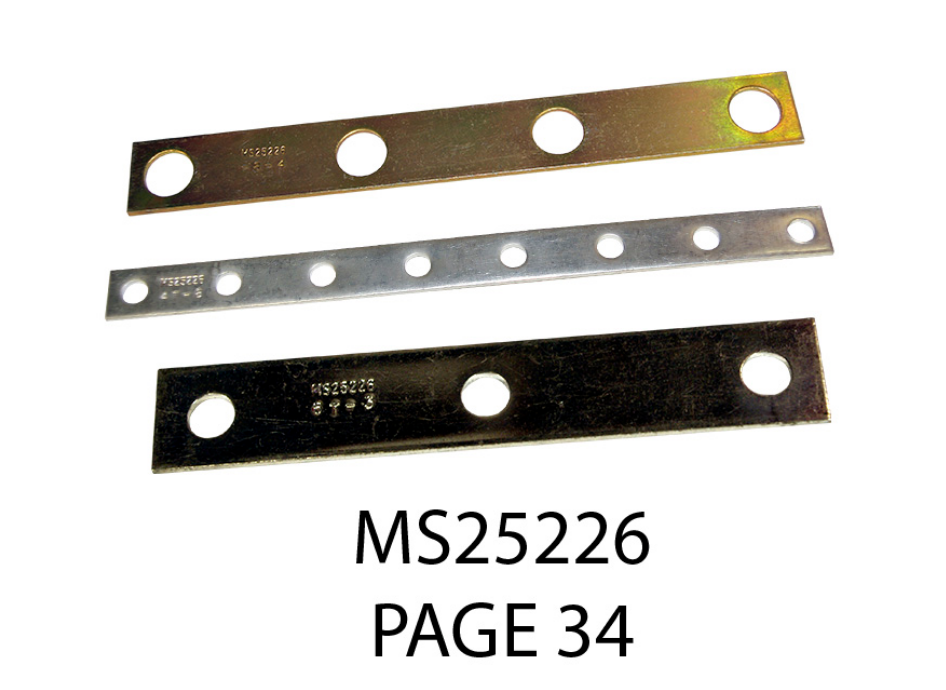

MS25226-2N-10	MS25226-4-10	MS25226-6-10	MS25226-8-10	MS25226-10-10
MS25226-2N-12	MS25226-4-11	MS25226-6-11	MS25226-8-11	MS25226-10-11
MS25226-2N-2	MS25226-4-12	MS25226-6-12	MS25226-8-12	MS25226-10-12
MS25226-2N-20	MS25226-4-13	MS25226-6-13	MS25226-8-13	MS25226-10-13
MS25226-2N-3	MS25226-4-14	MS25226-6-14	MS25226-8-14	MS25226-10-14
MS25226-2N-4	MS25226-4-15	MS25226-6-15	MS25226-8-15	MS25226-10-15
MS25226-2N-5	MS25226-4-16	MS25226-6-16	MS25226-8-16	MS25226-10-16
MS25226-2N-6	MS25226-4-17	MS25226-6-17	MS25226-8-17	MS25226-10-2
MS25226-2N-7	MS25226-4-18	MS25226-6-18	MS25226-8-18	MS25226-10-20
MS25226-2N-8	MS25226-4-19	MS25226-6-19	MS25226-8-19	MS25226-10-3
MS25226-2N-9	MS25226-4-2	MS25226-6-2	MS25226-8-2	MS25226-10-4
MS25226-2S-10	MS25226-4-20	MS25226-6-20	MS25226-8-20	MS25226-10-5
MS25226-2S-2	MS25226-4-3	MS25226-6-3	MS25226-8-21	MS25226-10-6
MS25226-2S-20	MS25226-4-4	MS25226-6-4	MS25226-8-3	MS25226-10-7
MS25226-2S-3	MS25226-4-5	MS25226-6-5	MS25226-8-4	MS25226-10-8
MS25226-2S-4	MS25226-4-6	MS25226-6-6	MS25226-8-5	MS25226-10-9
MS25226-2S-5	MS25226-4-7	MS25226-6-7	MS25226-8-6	MS25226-10N-10
MS25226-2S-7	MS25226-4-8	MS25226-6-8	MS25226-8-7	MS25226-10N-14
MS25226-2S-8	MS25226-4-9	MS25226-6-9	MS25226-8-8	MS25226-10N-2
MS25226-2T-10	MS25226-4N-10	MS25226-6N-2	MS25226-8-9	MS25226-10N-3
MS25226-2T-12	MS25226-4N-11	MS25226-6N-3	MS25226-8N-2	MS25226-10N-4
MS25226-2T-18	MS25226-4N-12	MS25226-6N-4	MS25226-8N-3	MS25226-10N-5
MS25226-2T-2	MS25226-4N-14	MS25226-6N-5	MS25226-8N-4	MS25226-10N-6
MS25226-2T-20	MS25226-4N-15	MS25226-6N-6	MS25226-8N-5	MS25226-10S-11
MS25226-2T-3	MS25226-4N-16	MS25226-6N-7	MS25226-8N-8	MS25226-10S-2
MS25226-2T-4	MS25226-4N-2	MS25226-6N-8	MS25226-8S-2	MS25226-10S-3
MS25226-2T-5	MS25226-4N-3	MS25226-6S-2	MS25226-8S-3	MS25226-10S-6
MS25226-2T-6	MS25226-4N-4	MS25226-6S-3	MS25226-8S-4	MS25226-10S-8
MS25226-2T-7	MS25226-4N-5	MS25226-6S-4	MS25226-8S-5	MS25226-10T-10
MS25226-2T-8	MS25226-4N-6	MS25226-6S-6	MS25226-8S-6	MS25226-10T-14
MS25226-2-10	MS25226-4N-7	MS25226-6S-8	MS25226-8S-8	MS25226-10T-16
MS25226-2-11	MS25226-4N-8	MS25226-6T-13	MS25226-8S-9	MS25226-10T-2
MS25226-2-12	MS25226-4N-9	MS25226-6T-2	MS25226-8T-2	MS25226-10T-20
MS25226-2-13	MS25226-4S-10	MS25226-6T-20	MS25226-8T-3	MS25226-10T-3
MS25226-2-14	MS25226-4S-14	MS25226-6T-3	MS25226-8T-4	MS25226-10T-4
MS25226-2-15	MS25226-4S-16	MS25226-6T-4	MS25226-8T-5	MS25226-10T-5
MS25226-2-16	MS25226-4S-2	MS25226-6T-5	MS25226-8T-6	MS25226-10T-6
MS25226-2-17	MS25226-4S-20	MS25226-6T-6	MS25226-8T-7	MS25226-10T-7
MS25226-2-18	MS25226-4S-3	MS25226-6T-7	MS25226-8T-8	MS25226-10T-8
MS25226-2-19	MS25226-4S-4	MS25226-6T-8
MS25226-2-2	MS25226-4S-5
MS25226-2-20	MS25226-4S-6
MS25226-2-24	MS25226-4S-7
MS25226-2-3	MS25226-4S-8
MS25226-2-4	MS25226-4S-9
MS25226-2-5	MS25226-4T-10
MS25226-2-6	MS25226-4T-12
MS25226-2-7	MS25226-4T-13
MS25226-2-8	MS25226-4T-14
MS25226-2-9	MS25226-4T-16
	MS25226-4T-18
	MS25226-4T-2
	MS25226-4T-20
	MS25226-4T-3
	MS25226-4T-4
	MS25226-4T-5
	MS25226-4T-6
	MS25226-4T-7
	MS25226-4T-8

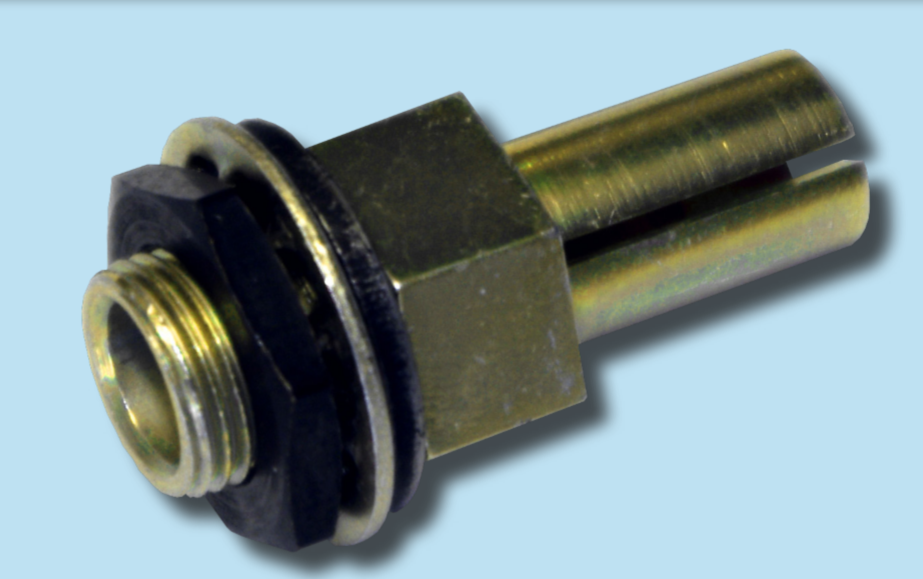

連接器組件

配套產品
插頭： RB83413/4-3
墊圈：AN960-D616L
螺帽：MS21340-03

選項（A）硬件

鎖緊墊圈：MS35338-141

螺帽：MS21340-03

墊圈：AN960-XC616

選項（B）硬件

螺帽：MS25082-B20

鎖緊墊圈：MS35333-42

墊圈：AN960-D616

要求

材料：套管：QQ-B-613規定的黃銅，觸點：QQ-B-750規定的磷青銅

a組，彈簧狀態

飾面：符合QQ-p-416，II型，2級的鎘板，或鋁涂層或電鍍。

應為配合塞提供止動裝置

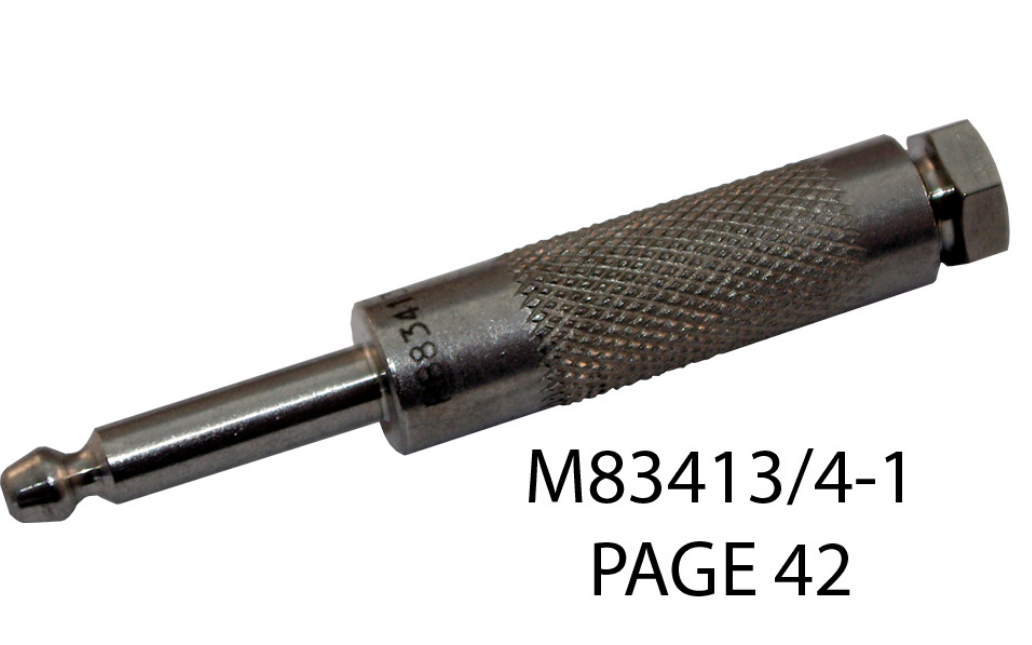

配套插頭：RB83413/4-1、M83413/4-1、RB3493-1和MS3493-1

僅在材料和尺寸規范中與零件號M83413/5-1相似。

RB9526標準組件附帶以下部件

（2） AN960-D616L和（1）MS21340-03

RB9526選件（A）組件附帶以下部件：

（2） AN960-XC616，（1）MS35338-141和（1）MS21340-03。

RB9526選件（B）組件附帶以下部件：

（1） AN960-D616，（1）MS35333-42和（1）MS25082-B20

連接器和組件，電氣，飛機接地：插座


配套產品

NUT MS25082-B20

LOCKWASHER MS35333-42

WASHER AN960-D616

REQUIREMENTS:

MATERIAL：

GROUNDING RECEPTACLE/ INSERT DETENT

1. BRUSH ALLOY M25 C17300

BERYLLIUM COPPER PER ASTM B196。

2. CAD. PLATE PER QQ-P-416, TYPE 2, CLASS 2.

3. INSERT/ DETENT COMPATIBLE WITH:

RB3493-1, RB3493-4, RB83413/4-3

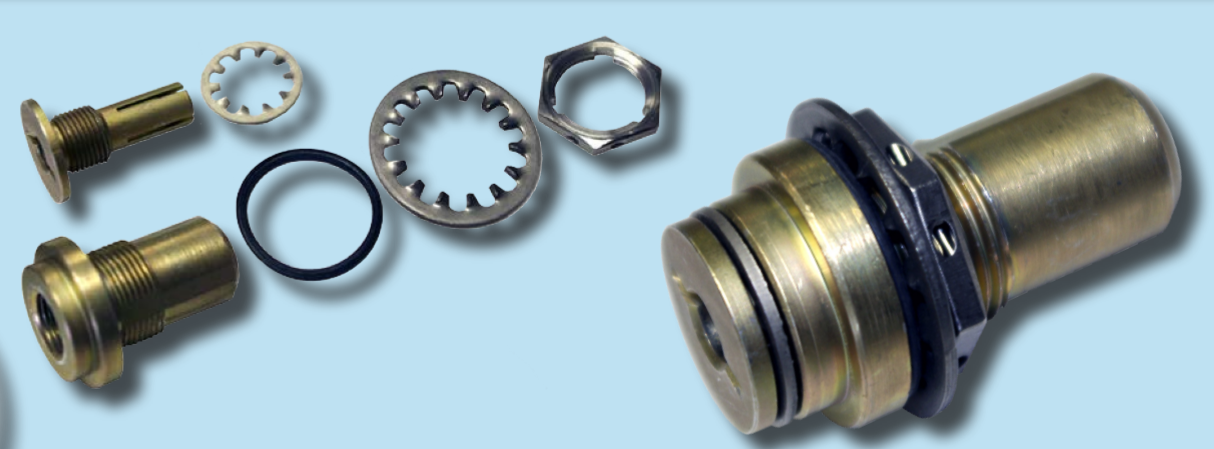

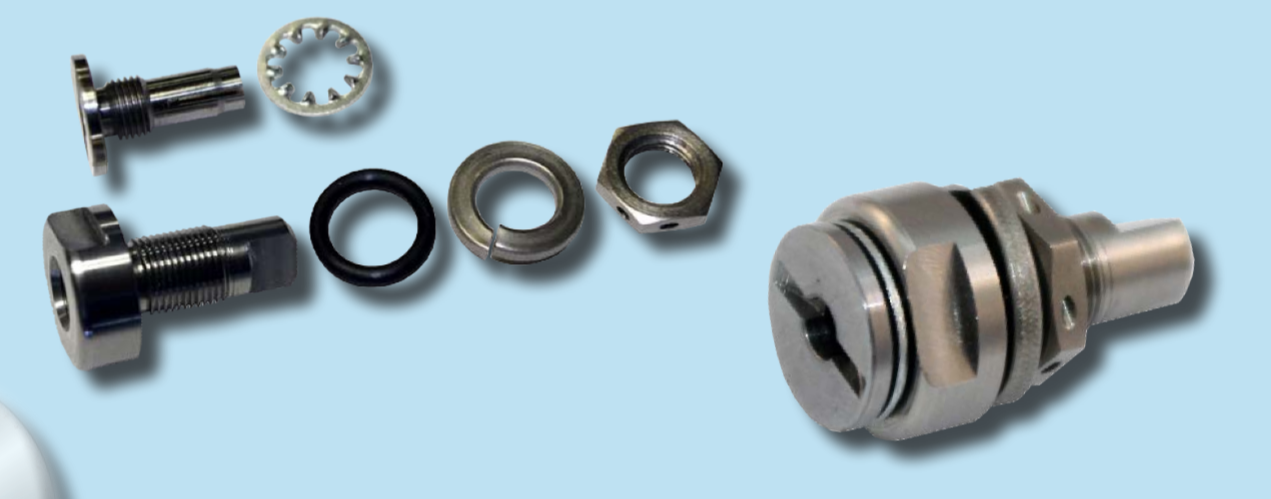

帶插入件和外殼的兩件式貯器


R&B電子公司RB83413/6-2A。與M 83413/6-2A在材料、形狀、配合及功能等方面相似。
RB83413/6-2A觸頭是一種反向拉回設計，提供更好的接觸更長的壽命。
RB83413/6-2A觸頭比M 83413/5-1和MS 90298-2具有更好的止動作用。
RB83413/6-2A是一個帶有o形環的密封接地貯器。

MATERIAL: INSERT/ INSERT DETENT 1. BRUSH ALLOY M25 C17300 COND. H BERYLLIUM COPPER PER ASTM B196. 2. NICKEL PLATE IN ACCORDANCE WITH

ASTM B733 TYPE III CLASS II

GROUNDING RECEPTACLE HOUSING TYPE A 1. STAINLESS STEEL IN ACCORDANCE WITH: SAE-AMS-S-7720 OR MIL-S-7720, 302 SERIES

IN ACCORDANCE WITH ASTM-A967 OR SAE-AMS-QQ-P-35. COMPOSITION, CONDITION A, PASSIVATED IN

NOTES: 1. UNLESS OTHERWISE SPECIFIED, DIMENSIONS IN INCHES. 2. DETENT ACTION SHALL BE PROVIDED FOR THE MATING PLUG. 3. CONTACT RESISTANCE: SHALL NOT EXCEED 5.0 MILLIOHMS.

INSERT/ DETENT COMPATIBLE WITH: MS3493-1, MS3493-4, AND M83413/4-1. RB3493-1, RB3493-4, M83413/4-3

飛機電氣接地插頭 ????????a???_20200604152705.png

NOTES:

1. Dimensions are in inches.

2. This plug will be used with a receptacle having a minimum bore diameter of

.182 (4.62 mm) and a maximum bore diameter of .184 (4.67 mm).

REQUIREMENTS:

1. Material: Stainless steel per MIL-S-7720, 302 OR 316 composition, condition A,

Passivated per QQ-P-35 for plugs and caps.

2. Contact resistance: .005 ohm maximum.

3. Mating receptacle: Per RB9527-0.

4. Part number: Apply permanently by stamping, etching, embossing or other means.

5. Part number marking is not required to be marked on RB3494-2 end caps.

6. Plugs shall be supplied with the end caps screwed in the mating end.

7. RB3494-1 Assembly shipped with the following component parts: (1) RB3494-3 plug and (1) RB3494-2 cap assembly.

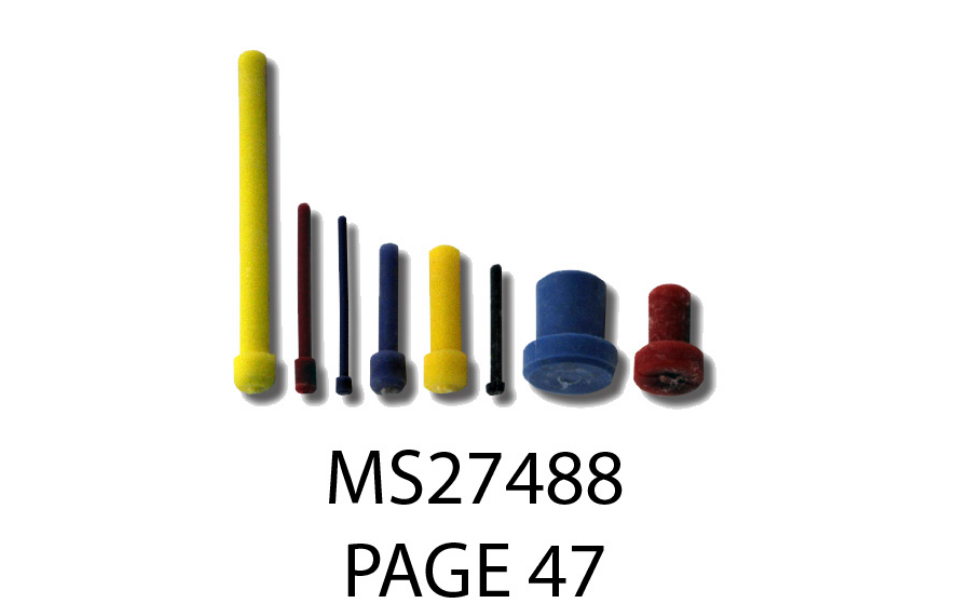

L型M和N型插頭端密封塞 ????????a???_20200604152430.png
MS27488-0
MS27488-0-1
MS27488-0-2
MS27488-0-3
MS27488-4
MS27488-4-1
MS27488-4-2
MS27488-4-3
MS27488-8
MS27488-8-1
MS27488-8-2
MS27488-8-3
MS27488-12
MS27488-12-1
MS27488-12-2
MS27488-12-3
MS27488-16
MS27488-16-2
MS27488-16-1
MS27488-16-3
MS27488-20
MS27488-20-1
MS27488-20-2
MS27488-20-3
MS27488-22
MS27488-22-1
MS27488-22-2
MS27488-22-3

金屬屏蔽層連接用金屬箍組件 ????????a???_20200604152623.png
RB9D0067-1
RB9D0067-2
RB9D0067-3
RB9D0067-4
RB9D0067-5
RB9D0067-6
RB9D0067-7
RB9D0067-8
RB9D0067-9
RB9D0067-10
RB9D0067-11
RB9D0067-12
RB9D0067-13
RB9D0067-14
RB9D0067-15

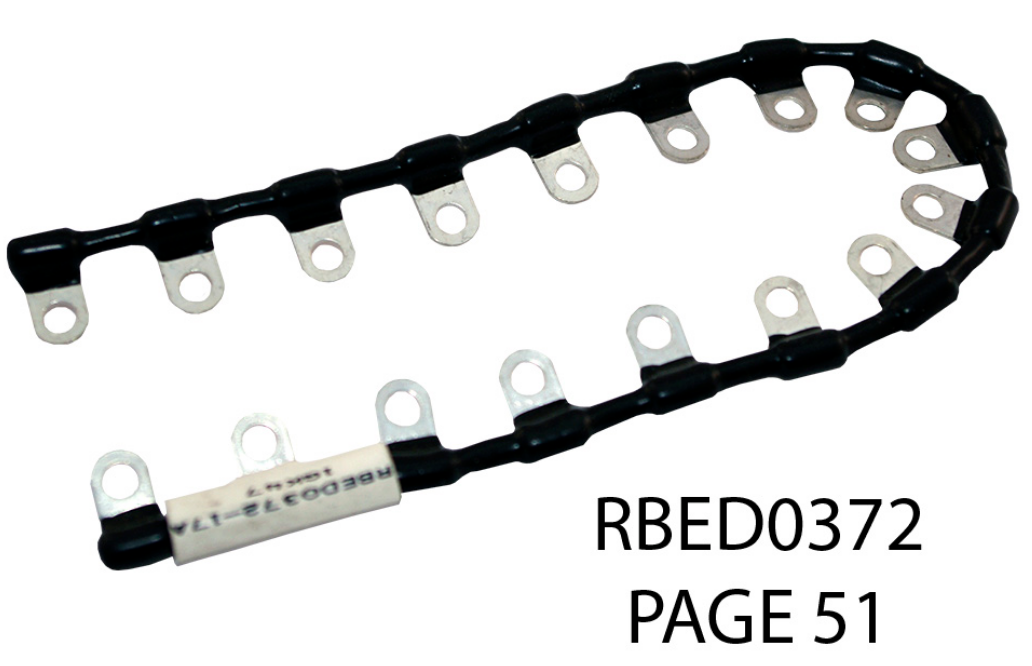

電氣柔性總線組件

RB3S-8-10-28-5	RB4S-48-9-8-5	RBED0372-17A
RB3S-8-10-28-6	RB4S-48-9-8-6	RBED0372-17B
RB3S-8-10-28-7	RB4S-48-9-8-7	RBED0372-17C
RB3S-8-10-28-8	RB4S-48-9-8-8	RBED0372-17D
RB3S-8-10-28-9	RB4S-48-9-8-9	RBED0372-17E
RB3S-8-10-28-10	RB4S-48-9-8-10	RBED0372-17F
RB3S-8-10-28-11	RB4S-48-9-8-11	RBED0372-17G
RB3S-8-10-28-12	RB4S-48-9-8-12	RBED0372-17H
RB3S-8-10-28-13	RB4S-48-9-8-13	RBED0372-17J
		RBED0372-17K
		RBED0372-17L
		RBED0372-17M
		RBED0372-17N
		RBED0372-17P
		RBED0372-17R
		RBED0372-17T
		RBED0372-17U
		RBED0372-17V
		RBED0372-17Y
