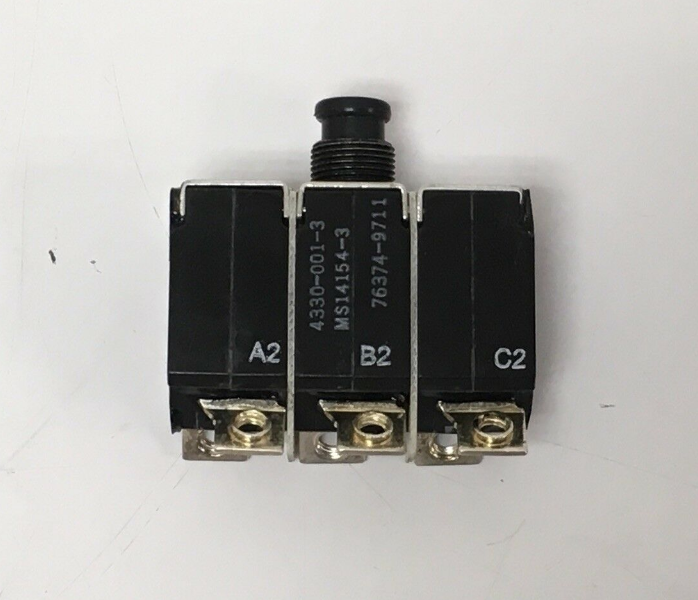

4330系列
這個輕量級的、微型三相斷路器,4330系列，反映了最新的斷路器的進步設計,結合self-wiping接觸，緊公差設計嚴謹，制造嚴謹標準。
這是fungusproof并具有很強的抗腐蝕能力。自動跳閘熱機制可以避免麻煩旅行(即使是暫時的啟動負載的浪涌)下環境溫度范圍從-55℃到+71℃。
校準通過以下方式維護完整性環境溫度變化很大和高度,使這是理想的斷路器應用溫度不是控制。
MS Approved 1 1.10 MS14154-1 4330-001-1 MS14154-1L 4330-007-1 MS14154-1V 4330-008-1 MS14154-1VL 4330-009-1
MS Approved 2 0.75 MS14154-2 4330-001-2 MS14154-2L 4330-007-2 MS14154-2V 4330-008-2 MS14154-2VL 4330-009-2
MS Approved 2 1/2 0.70 MS14154-2 1/2 4330-001-205 MS14154-2 1/2L 4330-007-205 MS14154-2 1/2V 4330-008-205 MS14154-2 1/2VL 4330-009-205
MS Approved 3 0.55 MS14154-3 4330-001-3 MS14154-3L 4330-007-3 MS14154-3V 4330-008-3 MS14154-3VL 4330-009-3
MS Approved 4 0.45 MS14154-4 4330-001-4 MS14154-4L 4330-007-4 MS14154-4V 4330-008-4 MS14154-4VL 4330-009-4
MS Approved 5 0.35 MS14154-5 4330-001-5 MS14154-5L 4330-007-5 MS14154-5V 4330-008-5 MS14154-5VL 4330-009-5
MS Approved 7 1/2 0.30 MS14154-7 1/2 4330-001-705 MS14154-7 1/2L 4330-007-705 MS14154-7 1/2V 4330-008-705 MS14154-7 1/2VL 4330-009-705
MS Approved 10 0.28 MS14154-10 4330-001-10 MS14154-10L 4330-007-10 MS14154-10V 4330-008-10 MS14154-10VL 4330-009-10
MS Approved 15 0.28 MS14154-15 4330-001-15 MS14154-15L 4330-007-15 MS14154-15V 4330-008-15 MS14154-15VL 4330-009-15
MS Approved 20 0.25 MS14154-20 4330-001-20 MS14154-20L 4330-007-20 MS14154-20V 4330-008-20 MS14154-20VL 4330-009-20
MIL Spec Part No. A*Max. B*Min.
MS14154 4330-001 0.750 0.470
MS14154L 4330-007 1.125 0.845
MS14154V 4330-008 0.750 0.470
MS14154VL 4330-009 1.125 0.845
MS P/N LABINAL P/N Page MS P/N LABINAL P/N Page MS P/N LABINAL P/N Page MS P/N LABINAL P/N Page
MIL-C-8509 MS14154-4VL 4300-009-4 32 MS25244-30 700-001-30 16 MS26574-10A 4200-004-10 22
MS3320-1 4310-001-1 24 MS14154-5 4330-001-5 32 MS25244-35 700-001-35 16 MS26574-10L 4200-003-10 22
MS3320-1L 4310-005-1 24 MS14154-5L 4330-007-5 32 MS25244-P5 700-089-5 16 MS26574-15 4200-001-15 22
MS3320-1V 4310-019-1 24 MS14154-5V 4330-008-5 32 MS25244-P7 1/2 700-089-705 16 MS26574-15A 4200-004-15 22
MS3320-1VL 4310-024-1 24 MS14154-5VL 4330-009-5 32 MS25244-P10 700-089-10 16 MS26574-15L 4200-003-15 22
MS3320-2 4310-001-2 24 MS14154-7 1/2 4330-001-705 32 MS25244-P15 700-089-15 16 MS26574-20 4200-001-20 22
MS3320-2L 4310-005-2 24 MS14154-7 1/2L 4330-007-705 32 MS25244-P20 700-089-20 16 MS26574-20A 4200-004-20 22
MS3320-2V 4310-019-2 24 MS14154-7 1/2V 4330-008-705 32 MS25244-P25 700-089-25 16 MS26574-20L 4200-003-20 22
MS3320-2VL 4310-024-2 24 MS14154-7 1/2VL 4330-009-705 32 MS25244-P30 700-089-30 16 MS26574-D3/4 4200-006-075 22
MS3320-2 1/2 4310-001-205 24 MS14154-10 4330-001-10 32 MS25244-P35 700-089-35 16 MS26574-D3/4L 4200-007-075 22
MS3320-2 1/2L 4310--005-205 24 MS14154-10L 4330-007-10 32 MS25244-PT5 700-092-5 16 MS26574-D1 4200-006-1 22
MS3320-2 1/2V 4310-019-205 24 MS14154-10V 4330-008-10 32 MS25244-PT7 1/2 700-092-705 16 MS26574-D1L 4200-007-1 22
MS3320-2 1/2VL 4310-024-205 24 MS14154-10VL 4330-009-10 32 MS25244-PT10 700--092-10 16 MS26574-D1 I/2 4200-006-105 22
MS3320-3 4310-001-3 24 MS14154-15 4330-001-15 32 MS25244-PT15 700-092-15 16 MS26574-D1 1/2L 4200-007-105 22
MS3320-3L 4310-005-3 24 MS14154-15L 4330-007-15 32 MS25244-PT20 700-092-20 16 MS26574-D2 4200-006-2 22
MS3320-3V 4310-019-3 24 MS14154-15V 4330-008-15 32 MS25244-PT25 700-092-25 16 MS26574-D2L 4200-007-2 22
MS3320-3VL 4310-024-3 24 MS14154-15VL 4330-009-15 32 MS25244-PT30 700-092-30 16 MS26574-D2 1/2 4200-006-205 22
MS3320-4 4310-001-4 24 MS14154-20 4330-001-20 32 MS25244-PT35 700-092-35 16 MS26574-D2 1/2L 4200-007-205 22
MS3320-4L 4310-005-4 24 MS14154-20L 4330-007-20 32 MS25361-50 160-012-50 12 MS26574-D3 4200-006-3 22
MS3320-4V 4310-019-4 24 MS14154-20V 4330-008-20 32 MS25361-50V 160-086-50 12 MS26574-D3L 4200-007-3 22
MS3320-4VL 4310-024-4 24 MS14154-20VL 4330-009-20 32 MS25361-60 160-012-60 12 MS26574-D4 4200-006-4 22
MS3320-5 4310-001-5 24 MS22073-1 4001-001-1 32 MS25361-60V 160-086-60 12 MS26574-D4L 4200-007-4 22
MS3320-5L 4310-005-5 24 MS22073-1V 4001-008-1 32 MS25361-70 160-012-70 12 MS26574-D5 4200-006-5 22
MS3320-5V 4310-019-5 24 MS22073-1 1/2 4001-001-105 20 MS25361-70V 160-086-70 12 MS26574-D5L 4200-007-5 22
MS3320-5VL 4310-024-5 24 MS22073-1 1/2V 4001-008-105 20 MS25361-75 160-012-75 12 MS26574-D7 1/2 4200-006-705 22
MS3320-7 1/2 4310-001-705 24 MS22073-2 4001-001-2 20 MS25361-75V 160-086-75 12 MS26574-D7 1/2L 4200-007-705 22
MS3320-7 1/2L 4310-005-705 24 MS22073-2V 4001-008-2 20 MS25361-80 160-012-80 12 MS26574-D10 4200-006-10 22
MS3320-7 1/2V 4310-019-705 24 MS22073-2 1/2 4001-001-205 20 MS25361-80V 160-086-80 12 MS26574-D10L 4200-007-10 22
MS3320-7 1/2VL 4310-024-705 24 MS22073-2 1/2V 4001-008-205 20 MS25361-90 160-012-90 12 MS26574-D15 4200-006-15 22
MS3320-10 4310-001-10 24 MS22073-3 4001-001-3 20 MS25361-90V 160-086-90 12 MS26574-D15L 4200-007-15 22
MS3320-10L 4310-005-10 24 MS22073-3V 4001-008-3 20 MS25361-100 160-012-100 12 MS26574-D20 4200-006-20 22
MS3320-10V 4310-019-10 24 MS22073-4 4001-001-4 20 MS25361-100V 160-086-100 12 MS26574-D20L 4200-007-20 22
MS3320-10VL 4310-024-10 24 MS22073-4V 4001-008-4 20 MS26574-3/4 4200-001-075 12
MS3320-15 4310-001-15 24 MS22073-5 4001-001-5 20 MS26574-3/4A 4200-004-075 12 MIL-C-83383
MS3320-15L 4310-005-15 24 MS22073-5V 4001-008-5 20 MS26574-3/4L 4200-003-075 22 M83383/01-01 SM600BA5N1 34
MS3320-15V 4310-019-15 24 MS22073-7 1/2 4001-001-705 20 MS26574-1 4200-001-1 22 M83383/01-03 SM600BA10N1 34
MS3320-15VL 4310-024-15 24 MS22073-7 1/2V 4001-008-705 20 MS26574-1A 4200-004-1 22 M83383/01-04 SM600BA15N1 34
MS3320-20 4310-001-20 24 MS22073-10 4001-001-10 20 MS26574-1L 4200-003-1 22 M83383/01-05 SM600BA20N1 34
MS3320-20L 4310-005-20 24 MS22073-10V 4001-008-10 20 MS26574-1 1/2 4200-001-105 22 M83383/01-06 SM600BA25N1 34
MS3320-20V 4310-019-20 24 MS22073-15 4001-001-15 20 MS26574-1 1/2A 4200-004-105 22 M83383/01-07 SM600BA35N1 34
MS3320-20VL 4310-024-20 24 MS22073-15V 4001-008-15 20 MS26574-1 1/2L 4200-003-105 22 M83383/01-08 SM600BA40N1 34
MS14154-1 4330-001-1 32 MS22073-20 4001-001-20 20 MS26574-2 4200-001-2 22 M83383/01-09 SM600BA50N1 34
MS14154-1L 4330-007-1 32 MS22073-20V 4001-008-20 20 MS26574-2A 4200-004-2 22 M83383/01-10 SM600BA60N1 34
MS14154-1V 4330-008-1 32 MS22073-D1 4001-011-1 20 MS26574-2L 4200-003-2 22 M83383/01-11 SM600BA75N1 34
MS14154-1VL 4330-009-1 32 MS22073-D1 1/2 4001-011-105 20 MS26574-2 1/2 4200-001-205 22 M83383/01-13 SM600BA100N1 34
MS14154-2 4330-001-2 32 MS22073-D2 4001-011-2 20 MS26574-2 1/2A 4200-004-205 22 M83383/02-01 SM600BA5A1 34
MS14154-2L 4330-007-2 32 MS22073-D2 1/2 4001-011-205 20 MS26574-2 1/2L 4200-003-205 22 M83383/02-03 SM600BA10A1 34
MS14154-2V 4330-008-2 32 MS22073-D3 4001-011-3 20 MS26574-3 4200-001-3 22 M83383/02-04 SM600BA15A1 34
MS14154-2VL 4330-009-2 32 MS22073-D4 4001-011-4 20 MS26574-3A 4200-004-3 22 M83383/02-05 SM600BA20A1 34
MS14154-2 1/2 4300-001-205 32 MS22073-D5 4001-011-5 20 MS26574-3L 4200-003-3 22 M83383/02-06 SM600BA25A1 34
MS14154-2 1/2L 4330-007-205 32 MS22073-D7 1/2 4001-011-705 20 MS26574-4 4200-001-4 22 M83383/02-07 SM600BA35A1 34
MS14154-2 1/2V 4330-008-205 32 MS22073-D10 4001-011-10 20 MS26574-4A 4200-004-4 22 M83383/02-08 SM600BA40A1 34
MS14154-2 1/2VL 4330-009-205 32 MS22073-D15 4001-011-15 20 MS26574-4L 4200-003-4 22 M83383/02-09 SM600BA50A1 34
MS14154--3 4330-001-3 32 MS22073-D20 4001-011-20 20 MS26574-5 4200-001-5 22 M83383/02-11 SM600BA60A1 34
MS14154-3L 4330-007-3 32 MS25244-5 700-001-5 16 MS26574-5A 4200-004-5 22 M83383/02-13 SM600BA75A1 34
MS14154-3V 4330-008-3 32 MS25244-7 1/2 700-001-705 16 MS26574-5L 4200-003-5 22 M83383/04-03 SM600BA100A1 34
MS14154-3VL 4300-009-3 32 MS25244-10 700-001-10 16 MS26574-7 1/2 4200-001-705 22 M83383/04-05 SM601BA10A1 34
MS14154-4 4330-001-4 32 MS25244-15 700-001-15 16 MS26574-7 1/2A 4200-004-705 22 M83383/04-07 SM601BA35A1 34
MS14154-4L 4330-007-4 32 MS25244-20 700-001-20 16 MS26574-7 1/2L 4200-003-705 22 M83383/04-08 SM601BA40A1 34
MS14154-4V 4330-008-4 32 MS25244-25 700-001-25 16 MS26574-10 4200-001-10 22 M83383/04-10 SM601BA60A1 34
940系列 1526系列 1536系列
Ampere Rating Voltage Drop Max.* Part Number
50 0.15 940-006-50
60 0.15 940-006-60
70 0.15 940-006-70
75 0.15 940-006-75
80 0.15 940-006-80
90 0.15 940-006-90
100 0.15 940-006-100
Ampere Rating Voltage Drop Max.* Part Number
1 1.20 1526-005-1
1 1/2 1.20 1526-005-105
2 0.95 1526-005-2
2 1/2 0.85 1526-005-205
3 0.85 1526-005-3
3 1/2 0.75 1526-005-305
4 0.72 1526-005-4
5 0.65 1526-005-5
7 1/2 0.60 1526-005-705
10 0.55 1526-005-10
15 0.50 1526-005-15
Ampere Rating Voltage Drop Max.* Part Number
5 0.350 1536-001-5
7 1/2 0.325 1536-001-705
10 0.300 1536-001-10
15 0.250 1536-001-15
20 0.200 1536-001-20
25 0.180 1536-001-25
30 1.180 1536-001-30
35 0.175 1536-001-35
40 0.175 1536-001-40
50 0.150 1536-001-50
4310系列
MS Approved 1 1.10 MS3320-1 4310-001-1 MS3320-1L 4310-005-1 MS3320-1V 4310-019-1 MS3320-1VL 4310-024-1
Non MS
Approved 1 1/2 0.80 4310-001-105 4310-005-105 4310-019-105 4310-024-105
MS Approved 2 0.75 MS3320-2 4310-001-2 MS3320-2L 4310-005-2 MS3320-2V 4310-019-2 MS3320-2VL 4310-024-2
MS Approved 2 1/2 0.70 MS3320-2-1/2 4310-001-205 MS3320-2 1/2L 4310--005-205 MS3320-2 1/2V 4310-019-205 MS3320-2 1/2VL 4310-024-205
MS Approved 3 0.55 MS3320-3 4310-001-3 MS3320-3L 4310-005-3 MS3320-3V 4310-019-3 MS3320-3VL 4310-024-3
MS Approved 4 0.45 MS3320-4 4310-001-4 MS3320-4L 4310-005-4 MS3320-4V 4310-019-4 MS3320-4VL 4310-024-4
MS Approved 5 0.35 MS3320-5 4310-001-5 MS3320-5L 4310-005-5 MS3320-5V 4310-019-5 MS3320-5VL 4310-024-5
MS Approved 7 1/2 0.30 MS3320-7-1/2 4310-001-705 MS3320-7 1/2L 4310-005-705 MS3320-7 1/2V 4310-019-705 MS3320-7 1/2VL 4310-024-705
MS Approved 10 0.28 MS3320-10 4310-001-10 MS3320-10L 4310-005-10 MS3320-10V 4310-019-10 MS3320-10VL 4310-024-10
MS Approved 15 0.25 MS3320-15 4310-001-15 MS3320-15L 4310-005-15 MS3320-15V 4310-019-15 MS3320-15VL 4310-024-15
MS Approved 20 0.25 MS3320-20 4310-001-20 MS3320-20L 4310-005-20 MS3320-20V 4310-019-20 MS3320-20VL 4310-024-20
Non MS
Approved 25 0.20 4310-001-25 4310-005-25 4310-019-25 4310-024-25

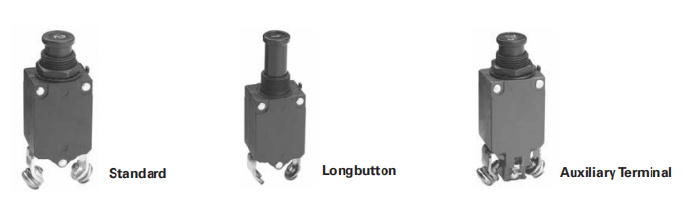

4200系列
MS Approved 3/4 1.45 MS26574-3/4 4200-001-075 MS26574-3/4L 4200-003-075 MS26574-D3/4 4200-006-075 MS26574-3/4A 4200-004-075 MS26574-D3/4L 4200-007-075
MS Approved 1 1.10 MS26574-1 4200-001-1 MS26574-1L 4200-003-1 MS26574-D1 4200-00 6-1 MS26574-1A 4200-004-1 MS26574-D1L 4200-007-1
MS Approved 1 1/2 0.75 MS26574-1 1/2 4200-001-105 MS26574-1 1/2L 4200-003-105 MS26574-D1 I/2 4200-006-105 MS26574-1 1/2A 4200-004-105 MS26574-D1 1/2L 4200-007-105
MS Approved 2 0.75 MS26574-2 4200-001-2 MS26574-2L 4200-003-2 MS26574-D2 4200-006-2 MS26574-2A 4200-004-2 MS26574-D2L 4200-007-2
MS Approved 2 1/2 0.70 MS26574-2 1/2 4200-001-205 MS26574-2 1/2L 4200-003-205 MS26574-D2 1/2 4200-006-205 MS26574-2 1/2A 4200-004-205 MS26574-D2 1/2L 4200-007-205
MS Approved 3 0.55 MS26574-3 4200-001-3 MS26574-3L 4200-003-3 MS26574-D3 4200-006-3 MS26574-3A 4200-004-3 MS26574-D3L 4200-007-3
MS Approved 4 0.45 MS26574-4 4200-001-4 MS26574-4L 4200-003-4 MS26574-D4 4200-006-4 MS26574-4A 4200-004-4 MS26574-D4L 4200-007-4
MS Approved 5 0.35 MS26574-5 4200-001-5 MS26574-5L 4200-003-5 MS26574-D5 4200-006-5 MS26574-5A 4200-004-5 MS26574-D5L 4200-007-5
MS Approved 7 1/2 0.30 MS26574-7 1/2 4200-001-705 MS26574-7 1/2L 4200-003-705 MS26574-D7 1/2 4200-006-705 MS26574-7 1/2A 4200-004-705 MS26574-D7 1/2L 4200-007-705
MS Approved 10 0.28 MS26574-10 4200-001-10 MS26574-10L 4200-003-10 MS26574-D10 4200-006-10 MS26574-10A 4200-004-10 MS26574-D10L 4200-007-10
MS Approved 15 0.25 MS26574-15 4200-001-15 MS26574-15L 4200-003-15 MS26574-D15 4200-006-15 MS26574-15A 4200-004-15 MS26574-D15L 4200-007-15
MS Approved 20 0.25 MS26574-20 4200-001-20 MS26574-20L 4200-003-20 MS26574-D20 4200-006-20 MS26574-20A 4200-004-20 MS26574-D20L 4200-007-20
Non
MS Approved 25 0.20 4200-001-25 4200-003-25 4200-006-25 4200-004-25 4200-007-25
1500系列
軍標標準 MS22074 f MIL-C-5809
Ampere Rating Voltage Drop Max.* Part Number
1/2 1.21 1500-052-05
3/4 1.21 1500-052-075
1 1.20 1500-052-1
1 1/2 1.10 1500-052-105
2 0.95 1500-052-2
2 1/2 0.85 1500-052-205
3 0.81 1500-052-3
4 0.72 1500-052-4
5 0.65 1500-052-5
10 0.55 1500-052-10
Interrupting Capacity 1/2 to 1A: 600A at 120V AC, 400 Hz.; 6,000A at 30V DC
1 1/2 to 4A: 1,000A at 120V AC 400 Hz.; 6,000A at 30V DC
5 to 10A: 600A at 120V AC 400 Hz.; 6,000A at 30V DC
Endurance At 120VAC, 400 Hz., or at 30V DC; inductive load — 2,500 cycles; resistive load —
5,000 cycles; mechanical cycling, no load — 5,000 cycles
Overload Cycling 100 operations at 200% rated current and rated voltage
Dielectric Strength 1,500V, minimum
Insulation Resistance Not less than 100 megohms at 500V, DC
Voltage Drop Varies with rating (see “Ordering Information”)
Vibration Exceeds MIL-STD-202, Method 204, Condition A
Shock Exceeds 30G’s, 11 Millisec (half-sine pulse) MIL-STD-202, Method 213 Test J
Acceleration Exceeds 10G’s
Weight 45 grams (.099 lbs.)

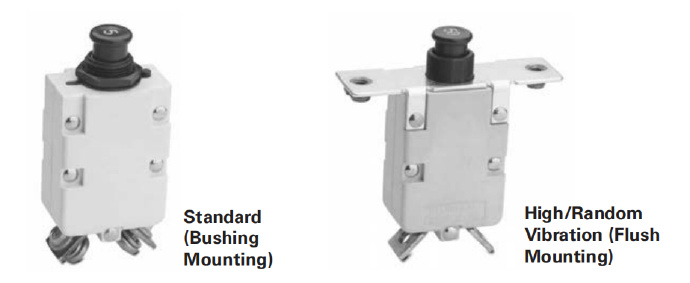

700系列
執行標準：
MS25244, MS25244-P and MS25244-PT of MIL-C-5809 (MS25244PT is a substitute for MS25017) .
Interrupting Capacity 6,000A at 30V, DC. 3,500A at 120V, 400 Hz., AC
Endurance At 120V, 400 Hz., AC or 30V, DC: inductive load — 2,500 cycles; resistive load — 5,000 cycles;
mechanical cycling, no load — 5,000 cycles
Overload Cycling 100 operations at 200% rated current and rated voltage
Dielectric Strength At sea level, 25°C 1,500V, AC. At 65,000 ft., 70°C 500V, AC. 1,500V, minimum
Insulation Resistance Not less than 100 megohms at 500V, DC
Voltage Drop Varies with rating (see “Ordering Information”)
Vibration Exceeds MIL-STD-202, Method 204, Condition A (Random Optional)
Shock Exceeds 30G’s, 11 Millisec (half-sine pulse) MIL-STD-202, Method 213 Test J
Acceleration Exceeds 10G’s
Weight 700-001: 43 grams (.1 lbs.). 700-089: 48 grams (.11 lbs.)
Altitude Maximum 65,000 ft
MS Approved 5 0.25 MS25244-5 700-001-5 MS25244-P5 700-089-5 MS25244-PT5 700-092-5
MS Approved 7 1/2 0.25 MS25244-7 1/2 700-001-705 MS25244-P7 1/2 700-089-705 MS25244-PT7 1/2 700-092-705
MS Approved 10 0.25 MS25244-10 700-001-10 MS25244-P10 700-089-10 MS25244-PT10 700-092-10
MS Approved 15 0.25 MS25244-15 700-001-15 MS25244-P15 700-089-15 MS25244-PT15 700-092-15
MS Approved 20 0.25 MS25244-20 700-001-20 MS25244-P20 700-089-20 MS25244-PT20 700-092-20
MS Approved 25 0.25 MS25244-25 700-001-25 MS25244-P25 700-089-25 MS25244-PT25 700-092-25
MS Approved 30 0.25 MS25244-30 700-001-30 MS25244-P30 700-089-30 MS25244-PT30 700-092-30
MS Approved 35 0.25 MS25244-35 700-001-35 MS25244-P35 700-089-35 MS25244-PT35 700-092-35
Non MS
Approved 40 0.25 700-001-40 700-089-40 700-092-40
Non MS
Approved 50 0.25 700-001-50 700-089-50 700-092-50

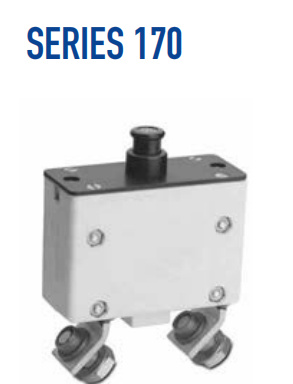

170系列
Interrupting Capacity 3,000A at 28V, DC; 2,500A at 115V, AC
Endurance At 120V, 400 Hz.: inductive load — 2,500 cycles; resistive load — 5,000 cycles;
at 30V, DC: inductive load — 1,000 cycles; resistive load — 5,000 cycles;
mechanical cyclin g, no load — 5,000 cycles
Overload Cycling 100 operations at 200% rated current and rated voltage
Dielectric Strength 1,500V, minimum
Insulation
Resistance
Not less than 100 megohms at 500V, DC
Voltage Drop 0.1 volt maximum at rated current
Vibration Exceeds MIL-STD-202, Method 204, Condition A
Shock Exceeds 30G’s, 11 Millisec (half-sine pulse) MIL-STD-202, Method 213 Test J
Acceleration Exceeds 10G’s
Weight 130 grams (0.286 lbs.)
Ampere Rating Voltage Drop Max.* Part Number
125 .100 170-001-125
140 .100 170-001-140
150 .100 170-001-150
160 .100 170-001-160
180 .100 170-001-180
200 .100 170-001-200
160系列
執行標準： MIL-C-5809 and MS25361
160 系列重型飛機型電路
50到100安培的斷路器
Interrupting Capacity 6,000A at 30V, DC; 3,500A at 120V, 400 Hz., AC
Endurance At 120VAC, 400 Hz.: inductive load — 5,000 cycles; resistive load — 5,000 cycles; at 30V, DC: inductive load — 2,500 cycles; resistive load — 5,000 cycles; mechanical cycling, no load — 5,000 cycles
Overload Cycling 100 operations at 200% rated current and rated voltage
Dielectric Strength At sea level, 25°C 1,500V, AC. At 70,000 ft., 71°C 500V, AC
Insulation Resistance Not less than 100 megohms at 500V, DC
Voltage Drop 0.15V, maximum
Vibration Meets specification MIL-STD-202, Method 204, Condition A–10G, 10–500 Hz.
Shock Exceeds 30G’s, 11 Millisec (half-sine pulse) MIL-STD-202, Method 213 Test J
Acceleration Exceeds 10G’s
Weight 113 grams (0.25 lbs.)
MS Approved 50 0.15 MS25361-50 160-012-50 MS25361-50V 160-086-50
MS Approved 60 0.15 MS25361-60 160-012-60 MS25361-60V 160-086-60
MS Approved 70 0.15 MS25361-70 160-012-70 MS25361-70V 160-086-70
MS Approved 75 0.15 MS25361-75 160-012-75 MS25361-75V 160-086-75
MS Approved 80 0.15 MS25361-80 160-012-80 MS25361-80V 160-086-80
MS Approved 90 0.15 MS25361-90 160-012-90 MS25361-90V 160-086-90
MS Approved 100 0.15 MS25361-100 160-012-100 MS25361-100V 160-086-100
|
|
