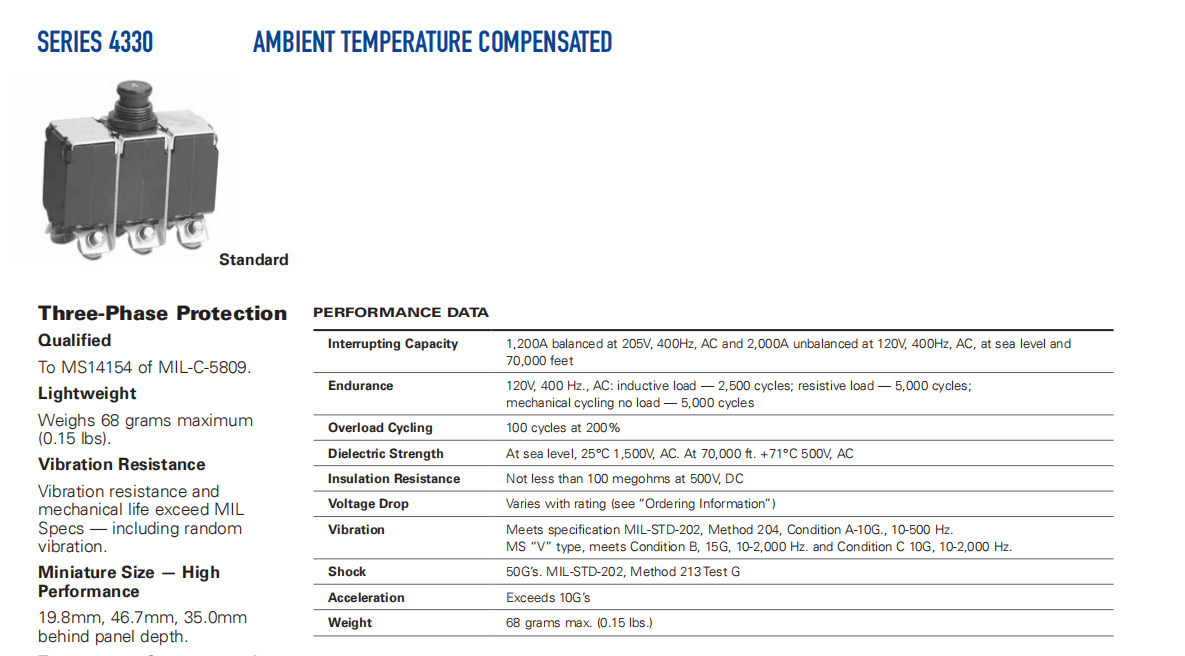

這款輕便、微型、，三相斷路器，4330系列，反映了斷路器的進展設計，結合自擦拭觸點，精密公差

設計和嚴格的制造圖靈標準。它是防霉的，并且高度抗腐蝕。無跳閘熱機械裝置避免干擾行程（即使在臨時啟動負載的浪涌）

環境溫度范圍從-55°C到+71°C。校準通過以下方式保持完整性環境溫度和海拔高度變化很大此斷路器非常適合溫度較高的應用

不受控制。多種選擇方案此系列有多種可選配置。目前正在生產7/16，15/32和公制安裝套筒。

不同終端、屏障和硬件的許多版本都是當前的生產項目。我們?yōu)榭蛻籼峁┝硕喾N不同的按鈕選項具有額外的靈活性。

深圳市偉健電子科技有限公司

地址：深圳市福田區振華路118號華麗裝飾大廈2棟一單元601

聯系人：臧宏剛

電話：15384495506(微信同步）

固話：0755-82719337-805

傳真：0755-23941921

E-mali:simon@wekorm.com

MS Approved 1 1.10 MS14154-1 4330-001-1 MS14154-1L 4330-007-1 MS14154-1V 4330-008-1 MS14154-1VL 4330-009-1

MS Approved 2 0.75 MS14154-2 4330-001-2 MS14154-2L 4330-007-2 MS14154-2V 4330-008-2 MS14154-2VL 4330-009-2

MS Approved 2 1/2 0.70 MS14154-2 1/2 4330-001-205 MS14154-2 1/2L 4330-007-205 MS14154-2 1/2V 4330-008-205 MS14154-2 1/2VL 4330-009-205

MS Approved 3 0.55 MS14154-3 4330-001-3 MS14154-3L 4330-007-3 MS14154-3V 4330-008-3 MS14154-3VL 4330-009-3

MS Approved 4 0.45 MS14154-4 4330-001-4 MS14154-4L 4330-007-4 MS14154-4V 4330-008-4 MS14154-4VL 4330-009-4

MS Approved 5 0.35 MS14154-5 4330-001-5 MS14154-5L 4330-007-5 MS14154-5V 4330-008-5 MS14154-5VL 4330-009-5

MS Approved 7 1/2 0.30 MS14154-7 1/2 4330-001-705 MS14154-7 1/2L 4330-007-705 MS14154-7 1/2V 4330-008-705 MS14154-7 1/2VL 4330-009-705

MS Approved 10 0.28 MS14154-10 4330-001-10 MS14154-10L 4330-007-10 MS14154-10V 4330-008-10 MS14154-10VL 4330-009-10

MS Approved 15 0.28 MS14154-15 4330-001-15 MS14154-15L 4330-007-15 MS14154-15V 4330-008-15 MS14154-15VL 4330-009-15

MS Approved 20 0.25 MS14154-20 4330-001-20 MS14154-20L 4330-007-20 MS14154-20V 4330-008-20 MS14154-20VL 4330-009-20

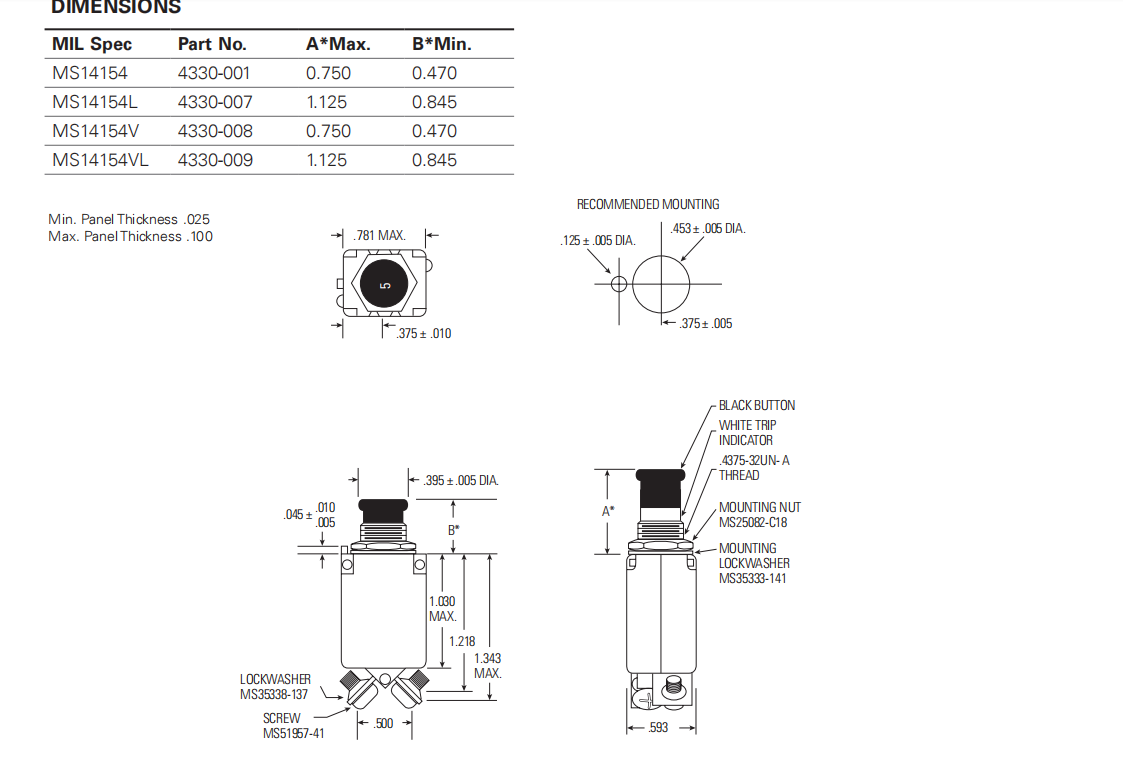

MIL Spec Part No. A*Max. B*Min.

MS14154 4330-001 0.750 0.470

MS14154L 4330-007 1.125 0.845

MS14154V 4330-008 0.750 0.470

MS14154VL 4330-009 1.125 0.845

MS P/N LABINAL P/N Page MS P/N LABINAL P/N Page MS P/N LABINAL P/N Page MS P/N LABINAL P/N Page

MIL-C-8509 MS14154-4VL 4300-009-4 32 MS25244-30 700-001-30 16 MS26574-10A 4200-004-10 22

MS3320-1 4310-001-1 24 MS14154-5 4330-001-5 32 MS25244-35 700-001-35 16 MS26574-10L 4200-003-10 22

MS3320-1L 4310-005-1 24 MS14154-5L 4330-007-5 32 MS25244-P5 700-089-5 16 MS26574-15 4200-001-15 22

MS3320-1V 4310-019-1 24 MS14154-5V 4330-008-5 32 MS25244-P7 1/2 700-089-705 16 MS26574-15A 4200-004-15 22

MS3320-1VL 4310-024-1 24 MS14154-5VL 4330-009-5 32 MS25244-P10 700-089-10 16 MS26574-15L 4200-003-15 22

MS3320-2 4310-001-2 24 MS14154-7 1/2 4330-001-705 32 MS25244-P15 700-089-15 16 MS26574-20 4200-001-20 22

MS3320-2L 4310-005-2 24 MS14154-7 1/2L 4330-007-705 32 MS25244-P20 700-089-20 16 MS26574-20A 4200-004-20 22

MS3320-2V 4310-019-2 24 MS14154-7 1/2V 4330-008-705 32 MS25244-P25 700-089-25 16 MS26574-20L 4200-003-20 22

MS3320-2VL 4310-024-2 24 MS14154-7 1/2VL 4330-009-705 32 MS25244-P30 700-089-30 16 MS26574-D3/4 4200-006-075 22

MS3320-2 1/2 4310-001-205 24 MS14154-10 4330-001-10 32 MS25244-P35 700-089-35 16 MS26574-D3/4L 4200-007-075 22

MS3320-2 1/2L 4310--005-205 24 MS14154-10L 4330-007-10 32 MS25244-PT5 700-092-5 16 MS26574-D1 4200-006-1 22

MS3320-2 1/2V 4310-019-205 24 MS14154-10V 4330-008-10 32 MS25244-PT7 1/2 700-092-705 16 MS26574-D1L 4200-007-1 22

MS3320-2 1/2VL 4310-024-205 24 MS14154-10VL 4330-009-10 32 MS25244-PT10 700--092-10 16 MS26574-D1 I/2 4200-006-105 22

MS3320-3 4310-001-3 24 MS14154-15 4330-001-15 32 MS25244-PT15 700-092-15 16 MS26574-D1 1/2L 4200-007-105 22

MS3320-3L 4310-005-3 24 MS14154-15L 4330-007-15 32 MS25244-PT20 700-092-20 16 MS26574-D2 4200-006-2 22

MS3320-3V 4310-019-3 24 MS14154-15V 4330-008-15 32 MS25244-PT25 700-092-25 16 MS26574-D2L 4200-007-2 22

MS3320-3VL 4310-024-3 24 MS14154-15VL 4330-009-15 32 MS25244-PT30 700-092-30 16 MS26574-D2 1/2 4200-006-205 22

MS3320-4 4310-001-4 24 MS14154-20 4330-001-20 32 MS25244-PT35 700-092-35 16 MS26574-D2 1/2L 4200-007-205 22

MS3320-4L 4310-005-4 24 MS14154-20L 4330-007-20 32 MS25361-50 160-012-50 12 MS26574-D3 4200-006-3 22

MS3320-4V 4310-019-4 24 MS14154-20V 4330-008-20 32 MS25361-50V 160-086-50 12 MS26574-D3L 4200-007-3 22

MS3320-4VL 4310-024-4 24 MS14154-20VL 4330-009-20 32 MS25361-60 160-012-60 12 MS26574-D4 4200-006-4 22

MS3320-5 4310-001-5 24 MS22073-1 4001-001-1 32 MS25361-60V 160-086-60 12 MS26574-D4L 4200-007-4 22

MS3320-5L 4310-005-5 24 MS22073-1V 4001-008-1 32 MS25361-70 160-012-70 12 MS26574-D5 4200-006-5 22

MS3320-5V 4310-019-5 24 MS22073-1 1/2 4001-001-105 20 MS25361-70V 160-086-70 12 MS26574-D5L 4200-007-5 22

MS3320-5VL 4310-024-5 24 MS22073-1 1/2V 4001-008-105 20 MS25361-75 160-012-75 12 MS26574-D7 1/2 4200-006-705 22

MS3320-7 1/2 4310-001-705 24 MS22073-2 4001-001-2 20 MS25361-75V 160-086-75 12 MS26574-D7 1/2L 4200-007-705 22

MS3320-7 1/2L 4310-005-705 24 MS22073-2V 4001-008-2 20 MS25361-80 160-012-80 12 MS26574-D10 4200-006-10 22

MS3320-7 1/2V 4310-019-705 24 MS22073-2 1/2 4001-001-205 20 MS25361-80V 160-086-80 12 MS26574-D10L 4200-007-10 22

MS3320-7 1/2VL 4310-024-705 24 MS22073-2 1/2V 4001-008-205 20 MS25361-90 160-012-90 12 MS26574-D15 4200-006-15 22

MS3320-10 4310-001-10 24 MS22073-3 4001-001-3 20 MS25361-90V 160-086-90 12 MS26574-D15L 4200-007-15 22

MS3320-10L 4310-005-10 24 MS22073-3V 4001-008-3 20 MS25361-100 160-012-100 12 MS26574-D20 4200-006-20 22

MS3320-10V 4310-019-10 24 MS22073-4 4001-001-4 20 MS25361-100V 160-086-100 12 MS26574-D20L 4200-007-20 22

MS3320-10VL 4310-024-10 24 MS22073-4V 4001-008-4 20 MS26574-3/4 4200-001-075 12

MS3320-15 4310-001-15 24 MS22073-5 4001-001-5 20 MS26574-3/4A 4200-004-075 12 MIL-C-83383

MS3320-15L 4310-005-15 24 MS22073-5V 4001-008-5 20 MS26574-3/4L 4200-003-075 22 M83383/01-01 SM600BA5N1 34

MS3320-15V 4310-019-15 24 MS22073-7 1/2 4001-001-705 20 MS26574-1 4200-001-1 22 M83383/01-03 SM600BA10N1 34

MS3320-15VL 4310-024-15 24 MS22073-7 1/2V 4001-008-705 20 MS26574-1A 4200-004-1 22 M83383/01-04 SM600BA15N1 34

MS3320-20 4310-001-20 24 MS22073-10 4001-001-10 20 MS26574-1L 4200-003-1 22 M83383/01-05 SM600BA20N1 34

MS3320-20L 4310-005-20 24 MS22073-10V 4001-008-10 20 MS26574-1 1/2 4200-001-105 22 M83383/01-06 SM600BA25N1 34

MS3320-20V 4310-019-20 24 MS22073-15 4001-001-15 20 MS26574-1 1/2A 4200-004-105 22 M83383/01-07 SM600BA35N1 34

MS3320-20VL 4310-024-20 24 MS22073-15V 4001-008-15 20 MS26574-1 1/2L 4200-003-105 22 M83383/01-08 SM600BA40N1 34

MS14154-1 4330-001-1 32 MS22073-20 4001-001-20 20 MS26574-2 4200-001-2 22 M83383/01-09 SM600BA50N1 34

MS14154-1L 4330-007-1 32 MS22073-20V 4001-008-20 20 MS26574-2A 4200-004-2 22 M83383/01-10 SM600BA60N1 34

MS14154-1V 4330-008-1 32 MS22073-D1 4001-011-1 20 MS26574-2L 4200-003-2 22 M83383/01-11 SM600BA75N1 34

MS14154-1VL 4330-009-1 32 MS22073-D1 1/2 4001-011-105 20 MS26574-2 1/2 4200-001-205 22 M83383/01-13 SM600BA100N1 34

MS14154-2 4330-001-2 32 MS22073-D2 4001-011-2 20 MS26574-2 1/2A 4200-004-205 22 M83383/02-01 SM600BA5A1 34

MS14154-2L 4330-007-2 32 MS22073-D2 1/2 4001-011-205 20 MS26574-2 1/2L 4200-003-205 22 M83383/02-03 SM600BA10A1 34

MS14154-2V 4330-008-2 32 MS22073-D3 4001-011-3 20 MS26574-3 4200-001-3 22 M83383/02-04 SM600BA15A1 34

MS14154-2VL 4330-009-2 32 MS22073-D4 4001-011-4 20 MS26574-3A 4200-004-3 22 M83383/02-05 SM600BA20A1 34

MS14154-2 1/2 4300-001-205 32 MS22073-D5 4001-011-5 20 MS26574-3L 4200-003-3 22 M83383/02-06 SM600BA25A1 34

MS14154-2 1/2L 4330-007-205 32 MS22073-D7 1/2 4001-011-705 20 MS26574-4 4200-001-4 22 M83383/02-07 SM600BA35A1 34

MS14154-2 1/2V 4330-008-205 32 MS22073-D10 4001-011-10 20 MS26574-4A 4200-004-4 22 M83383/02-08 SM600BA40A1 34

MS14154-2 1/2VL 4330-009-205 32 MS22073-D15 4001-011-15 20 MS26574-4L 4200-003-4 22 M83383/02-09 SM600BA50A1 34

MS14154--3 4330-001-3 32 MS22073-D20 4001-011-20 20 MS26574-5 4200-001-5 22 M83383/02-11 SM600BA60A1 34

MS14154-3L 4330-007-3 32 MS25244-5 700-001-5 16 MS26574-5A 4200-004-5 22 M83383/02-13 SM600BA75A1 34

MS14154-3V 4330-008-3 32 MS25244-7 1/2 700-001-705 16 MS26574-5L 4200-003-5 22 M83383/04-03 SM600BA100A1 34

MS14154-3VL 4300-009-3 32 MS25244-10 700-001-10 16 MS26574-7 1/2 4200-001-705 22 M83383/04-05 SM601BA10A1 34

MS14154-4 4330-001-4 32 MS25244-15 700-001-15 16 MS26574-7 1/2A 4200-004-705 22 M83383/04-07 SM601BA35A1 34

MS14154-4L 4330-007-4 32 MS25244-20 700-001-20 16 MS26574-7 1/2L 4200-003-705 22 M83383/04-08 SM601BA40A1 34

MS14154-4V 4330-008-4 32 MS25244-25 700-001-25 16 MS26574-10 4200-001-10 22 M83383/04-10 SM601BA60A1 34
